Why Ardo washing machines break down and how to identify the cause from error codes
Appliances fail for three reasons: natural wear of components, hard Moscow water and overloading the drum. The first step for any breakdown is diagnostics, not replacing parts at random.
What Ardo error codes E01–E09 mean
| Code | Component | What the technician checks |
|---|---|---|
| E01 | Water intake | Inlet valve, level sensor, hose filter |
| E02 | Water drainage | Drain pump, hose, filter, blocked drain |
| E03 | Heating | Heating element, temperature sensor, thermostat, heating circuit, relay |
| E04 | Water level | Pressure switch, pressure switch tube, level sensor |
| E05 | Spin | Tachogenerator, brushes, belt, shock absorbers |
| E06 | Motor | Windings, brushes, starting capacitor, module |
| E07 | Door | Door lock, hinge, lock latch, hatch wiring |
| E08 | Electronics | Control board, contacts, tracks, capacitors |
| E09 | Software fault | Module firmware, selector, power button |

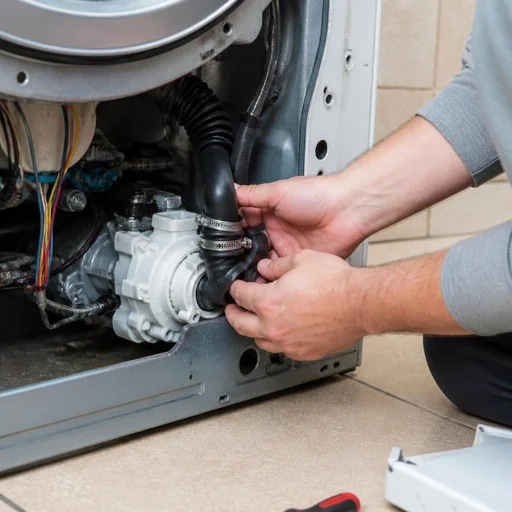

Why an Ardo washing machine won't drain water

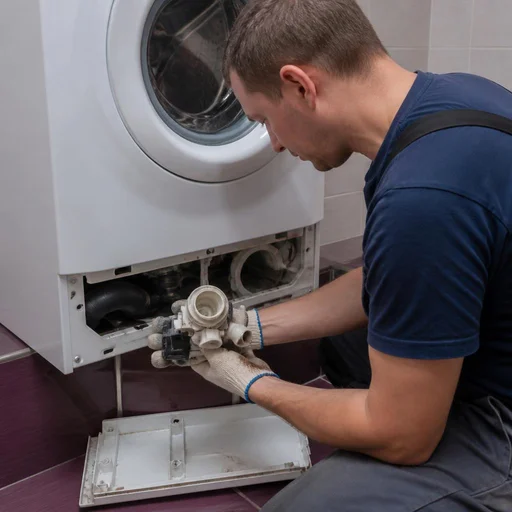

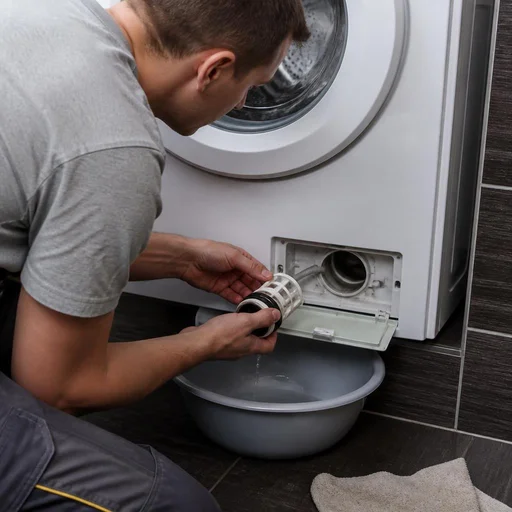

Most often an Ardo won't drain water because of a clogged drain filter, worn drain pump or blocked pump hose. On top-load models the filter is accessed through the side panel; on front-load machines it's behind a decorative cap at the bottom of the body. Hard water accelerates fouling of the pump impeller and narrowing of the hose bore — after three to four years of use, flow capacity drops noticeably. A blocked drain produces the same symptom as a dying pump: the machine hums but the water stays put. Before replacing the pump, the technician checks the filter and hose — in half of all cases drainage is restored by cleaning, and pump replacement isn't needed.
How Ardo diagnostics are carried out at home
Our technician carries out diagnostics at your home: connects the machine to the mains, reads the error code and checks components with a multimeter right on the spot. First he takes readings from the heating element, temperature sensor and motor windings, then checks the integrity of the wiring and contacts on the control board — based on the combined data he makes an accurate diagnosis rather than replacing parts one by one. In our practice, Ardo washing machine repairs are most often completed in a single visit: bearings, pumps, heating elements, seals and sensors are carried by the technician in a standard kit for popular series. At-home diagnostics saves time — most faults are fixed straight away, and a repeat visit is only needed when a rare spare part has to be ordered.
What malfunctions does Eco-Service fix on Ardo
Below are the Ardo components that fail most often: the heating circuit, the electronics, the drum assembly, the seals and the motor. For each item we'll break down exactly what fails and what operations the technician performs.

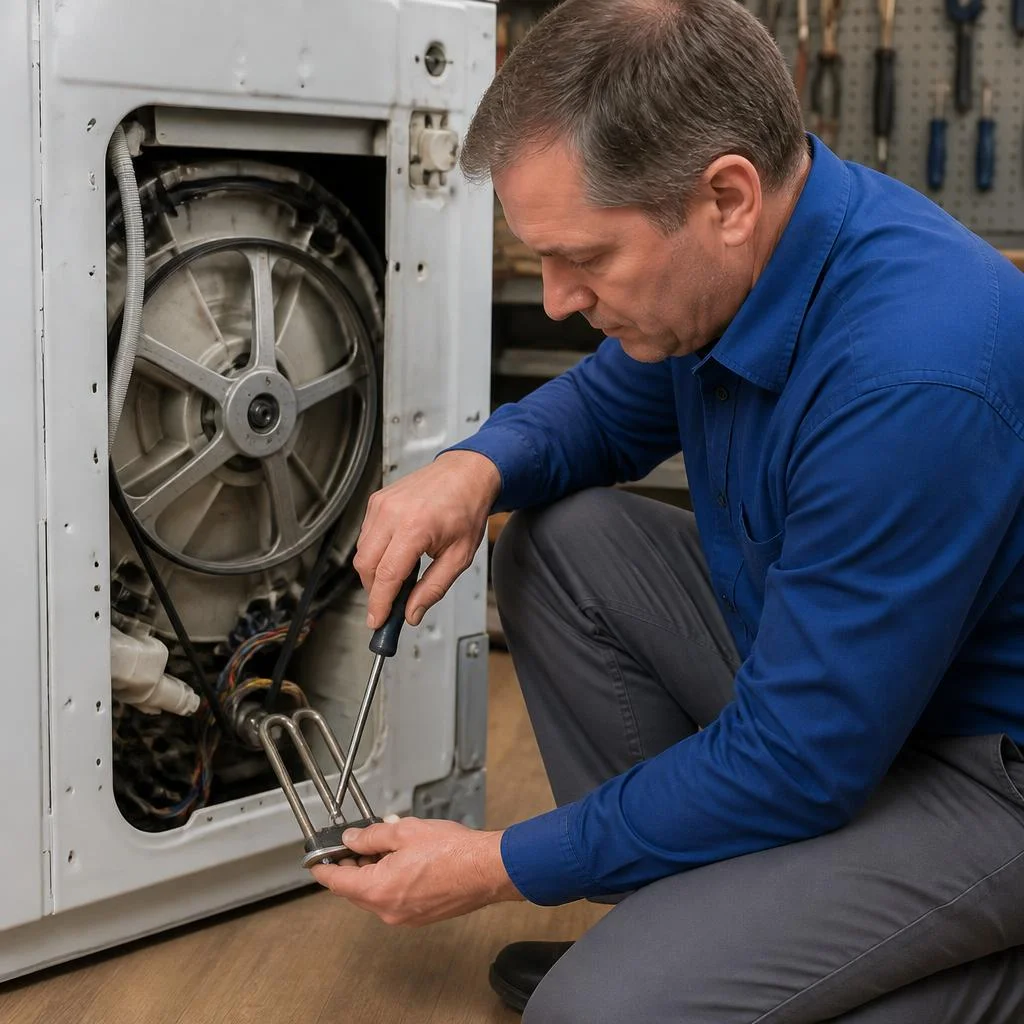

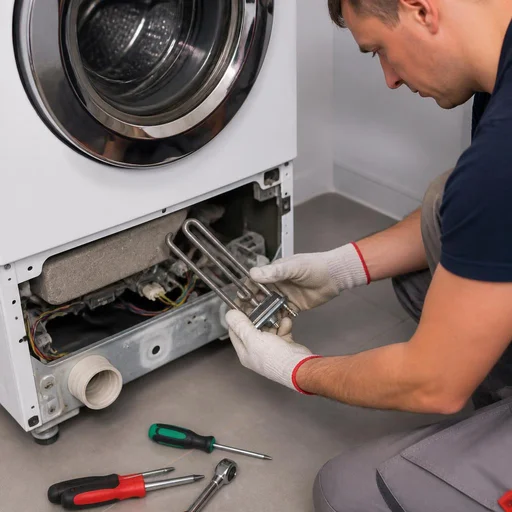

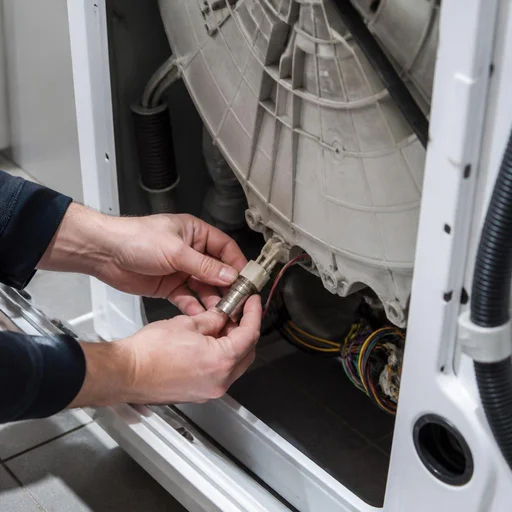

Replacing the heating element in an Ardo washing machine
Replacing the heating element in an Ardo washing machine is needed when the water doesn't heat up to the set temperature and an error code for the heating circuit appears on the display. First, the technician tests the heating element with a multimeter: a working heating element gives a resistance within the normal range, while a breakdown to the housing or a broken coil is immediately visible. If the coil is intact, we check the temperature sensor and thermostat — when the sensor's resistance readings are too high, the module blocks heating even though the heater itself is working. At Eco-Service, when replacing the heater, the terminals and wiring are inspected right away: burnt contacts are a common cause of repeated protection trips. Scale on the heating element tube accelerates wear of the temperature sensor and thermostat, so when replacing the heater the technician checks the entire heating circuit — otherwise the new part will fail within a month.

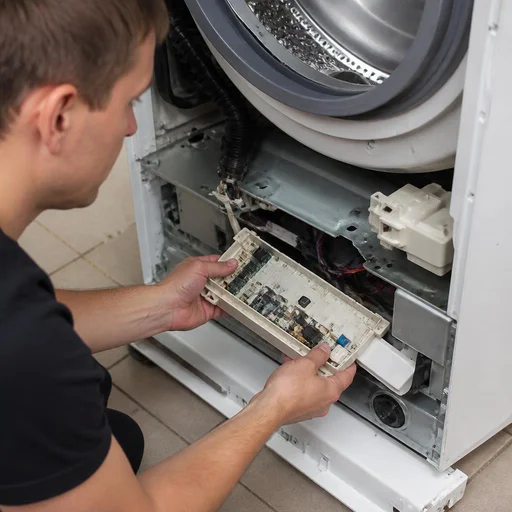

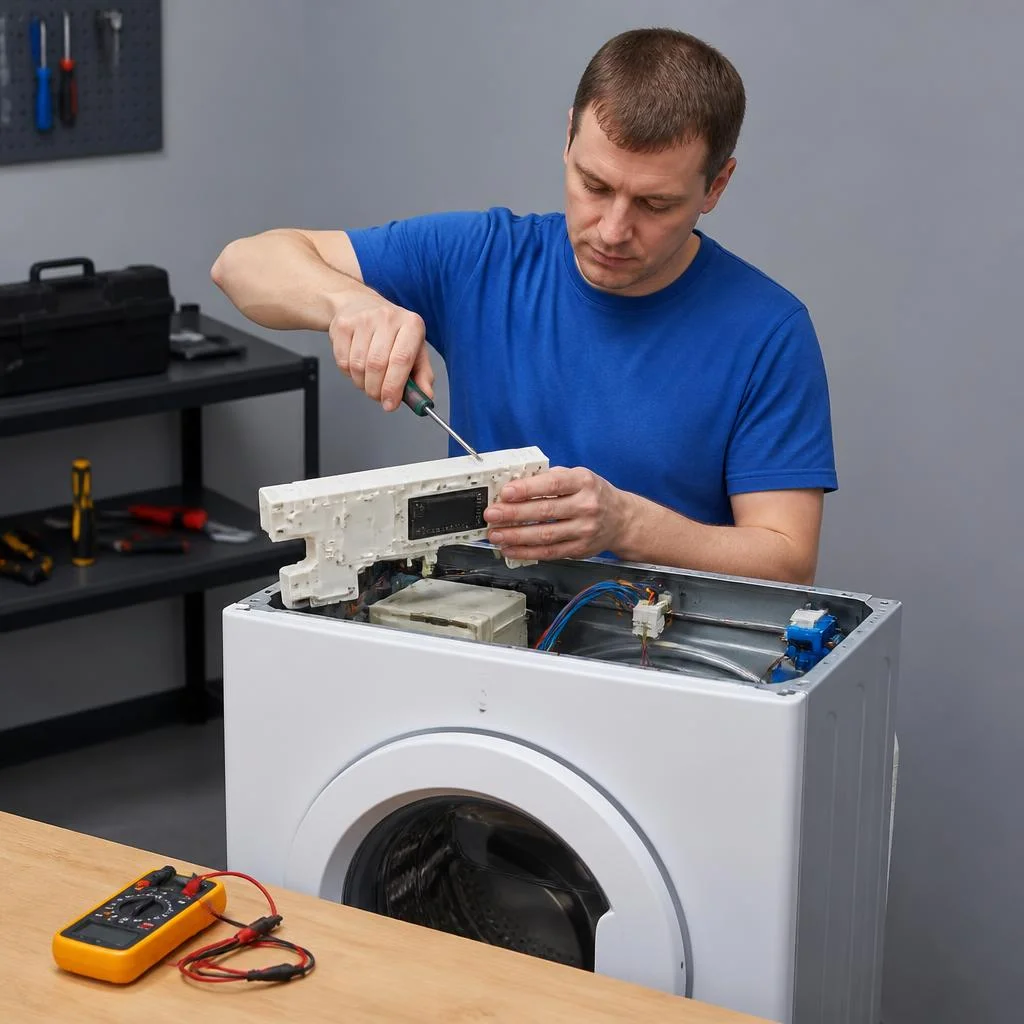

Repairing the control module of an Ardo washing machine
Restoring the control module of an Ardo washing machine is possible: the control board is more often repairable than a full replacement, if individual components are damaged rather than the entire module. Typical symptoms are spontaneous program reset, freezing at one stage of the wash, failure of the power button or program selector. The technician opens the module housing and inspects the board under magnification: swollen capacitors, charred traces, signs of overheating on the power switches. Re-soldering contacts, replacing relays and restoring traces bring the board back to life, and reflashing preserves the factory Ardo cycles. At Eco-Service, the board is diagnosed first, and only if traces are charred over a large area is replacement of the electronic module suggested. Restoring the control board preserves the factory program settings — this noticeably extends the service life of the unit compared to installing a non-original module.
Drum wear: bearings, seal, spider, tub
| Component | Symptom | What the technician does |
|---|---|---|
| Drum bearings | Humming and vibration during spin | Disassembles the tub, presses out the old ones, installs new ones |
| Drum seal | Oily leak at the shaft | Replaces together with the bearings, lubricates the assembly |
| Drum spider | Shaft play, rusty streaks | Assesses wear, replaces the spider if corroded |
| Tub assembly | Cracks, non-separable design | Disassembles the tub or installs a new assembly |
| Drum shaft | Runout during rotation | Checks on a lathe, replaces together with the spider if worn |
| Drum pulley | Belt slipping | Tightens the fasteners, replaces the part if the keyway is worn |
Humming during the spin cycle on an Ardo indicates worn drum bearings, while leaks point to the seal or spider. Bearings are replaced together with the seal: if a new bearing is installed on a worn seal, water will get into the assembly again and it will fail.
Leaks and mechanical components: door seal, counterweight, motor brushes
Leaks at the Ardo door are most often caused by wear of the door seal, while sparking and loss of power are caused by the motor brushes. Over time the door seal cracks along its folds and stops pressing against the glass: water runs onto the floor in a thin stream that's easy to miss during a quick wash. The counterweight is checked for cracks and loose fasteners — vibration during spinning gradually loosens the bolts, and then the concrete block starts to shift. Motor brushes wear down to the graphite base: the commutator sparks, RPM drops, and spinning becomes sluggish. The door seal is replaced at the first signs of cracks — delaying the work leads to corrosion of the counterweight and spider, and then the cost of services increases several times over.
Ardo Top-Load and Front-Load: What's the Difference During Repair
The loading type determines the disassembly logic: on front-loading Ardo machines, the technician works through the door and front panel, while on top-loading ones — through removable side panels and the top cover. This affects the time needed to access the pump, heating element, and bearings.
Ardo Top-Loading Washing Machine: Repair and Specific Features
Repair of a top-loading Ardo washing machine is carried out by removing the side walls rather than through the door, which speeds up access to the drain pump and heating element. The body of such models is narrow — 40 cm across the front — so the technician removes the side panel entirely and gains direct access to the pump, heater, and water level sensor without dismantling the tub. The top cover on top-loading Ardo machines is removable: through it, it's convenient to replace the program selector, power button, and the electronic module mounted at the rear wall. Drum bearings are replaced separately from the housing — the tub is removed and re-pressed on a workbench, which reduces the risk of touching the shock absorbers and counterweight. In our practice, top-loading Ardo machines are disassembled 20-30 minutes faster than front-loading equivalents, so leak diagnostics and door seal replacement here are done in a single visit.
Ardo TL and FL Series: What to Consider During Repair
| Series | Loading Type | Repair Feature | Spider and Tub |
|---|---|---|---|
| Ardo TL | Top-Loading | Access through side panel and top cover | Separate spider, tub removed independently |
| Ardo FL | Front-Loading | Disassembly through door and front panel | Different spider, tub attached to front wall |
| Ardo TL | Top-Loading | Module at rear wall, pump under side panel | Selection by nameplate marking |
| Ardo FL | Front-Loading | Door seal and counterweight accessible immediately | Original Ardo spare parts for the specific series |
The spiders and tubs differ for the TL and FL series — when ordering a part, the technician verifies the series and model, otherwise the part won't fit. At Eco-Service, orders are accepted based on the marking on the nameplate.
Original Ardo spare parts and why they matter
For Italian Ardo machines, part compatibility matters more than price: the mounting dimensions of components changed between generations, and an incorrectly selected part can damage neighboring ones. Let's break down where we source spare parts and what the technician's work includes.
Where to find spare parts for an Ardo washing machine
Eco-Service uses original Ardo spare parts from the service center's warehouse, so rare components don't have to be waited on for weeks. Ardo washing machine repair begins with identifying the model from the nameplate on the housing: the FL and TL series were built on different platforms, and their bearing assemblies are not interchangeable. The technician verifies the part number against the manufacturer's catalog, checks the batch, and only then orders the part. Compatible aftermarket equivalents are cheaper, but for Ardo they often differ in mounting dimensions — the specialist verifies the part number against the model so the part fits without modifications. In our practice, there was a case where a client brought a "universal" heating element that didn't fit due to the flange length, and the machine sat disassembled for two weeks. That's why before ordering we always request a photo of the nameplate — this saves one visit and eliminates the need to return the part.
What the technician's work includes beyond replacing the part
- On-site diagnostics: the technician tests the heating circuit, checks the pressure in the system, and records any related deviations before starting disassembly.
- Inspection of adjacent components: after replacing the drain pump, they inspect the drain filter and pump hose — a clogged filter creates back pressure and kills the new component within a month.
- Test run: the machine is run in spin and drain mode to make sure there are no leaks or vibration.
- Operating recommendations: the technician explains which cycle and how much detergent will extend the life of the replaced component.
- Warranty paperwork: a document is issued for the work with a 2-year warranty period and a list of replaced parts.
Ardo Service Center in Moscow: how to call a technician and what about the warranty
We explain how work with Ardo machines is organized: in-person drop-off at the service center, a technician visit to your home, and warranty terms. Here too are the practical details that affect the turnaround time.
Ardo Service Center: specialization and device intake
The Ardo service center at Eco-Service is our own, with in-person device intake and technicians specializing in this brand. Intake is handled at the center's address, where you can bring the machine yourself or hand it over after coordinating with the operator. The technician works with the TL and FL series: top-loading and front-loading, different generations of electronic modules, and the mechanical components of the drum. Specialization in Ardo gives a concrete advantage — the typical breakdowns of these machines are known in advance, and common spare parts are in stock, which shortens the turnaround time compared to general-purpose workshops. In my opinion, a narrow focus matters more here than a broad one: a technician who takes apart Ardo machines every day pinpoints the diagnosis from a single error code more accurately than a specialist who works with all brands at once.
How to call a technician to your home
- Request online or by phone: leave the machine model, a description of the symptom, and a convenient visit time — the operator will confirm the technician's visit.
- Error code on the display: write down the E01–E09 combination before the specialist arrives — it speeds up diagnostics at home and indicates which spare part to bring along.
- Tools and common parts: the technician arrives with diagnostic equipment and typical Ardo spare parts, so part of the work is completed in a single visit.
- On-site diagnostics: the heating circuit, drain, bearings, and electronics are checked; the final scope of work is agreed with you before it begins.
- If a workshop is needed: in case of a complex breakdown of the tub or module, the machine is transported to the Ardo service center in Moscow for work on the test bench.
2-year warranty on Ardo repairs
Eco-Service provides a 2-year warranty on Ardo washing machine repairs — both on the technician's work and on the installed spare parts. This covers heating element replacement, control board repair, drum bearing replacement, and other operations from the price list: the warranty certificate is issued after the work along with a report listing the operations performed. Original Ardo spare parts are replaced again free of charge in a warranty case — provided that the breakdown is not related to external impact. When handing over the machine, the technician leaves a memo with the operating conditions. The warranty is valid if they are observed: overloading the drum, voltage surges without a stabilizer, and disassembling the machine yourself after the work will void it. If you are unsure about the cause of a repeat malfunction — photograph it before contacting us, this simplifies the handling of the warranty case.
Repair or a new machine: when an Ardo is still worth repairing
How to assess whether restoring an appliance pays off, and why the service life and the nature of the breakdown matter more than the age of the unit. We look at two scenarios — when a technician's work is justified and when it makes more sense to buy a new appliance.
When restoring an Ardo is more cost-effective than buying a new machine
Restoring Ardo washing machines is more cost-effective than a new machine if a single unit has failed — the drain pump, the heating element or the door seal — while the drum and tub are in good order. Appliances of the TL and FL series last 10-15 years: with sound mechanics, replacing a single wear part extends the service life by several more years. Replacing the drum bearings and the tub as an assembly is the most labour-intensive work: disassembly takes several hours, and the spider and oil seal are replaced together with the bearings. If a faulty electronic module is added to this, the scope of work sometimes approaches the price of a budget model — the technician says so directly, without pushing. In our practice, the owner of an Ardo FL with a leak at the seal was turned down by two services that offered to replace the entire tub, yet after diagnostics, replacing the seal and the hose was enough. Through Eco-Service you can request an estimate by error code before the visit — this saves time if the breakdown turns out to be borderline.
Why do-it-yourself intervention on an Ardo is risky
Do-it-yourself intervention is risky because of sealed tubs and fragile plastic fastenings — if disassembly goes wrong, the entire tub assembly has to be replaced. On appliances of the Ardo TL and Ardo FL series, both the drum spiders and the bearing seats differ: in top-loading models the assembly is disassembled differently than in front-loading ones, and after 8-10 years of use the plastic loses its elasticity. Video guides are filmed on a specific model, and repeating the steps from someone else's appliance leads to stripped threads or a cracked flange — then the cost of the bearings is compounded by replacing the tub. A separate trap is the spider: it is removed with a puller, and an attempt to knock it out with a hammer deforms the shaft and destroys the seat. If after disassembly there are leftover parts or the machine hums louder than before during the spin cycle — call a technician before the shaft seizes up completely.
Conclusion
We have gathered the main points that determine the outcome of restoring Ardo washing machines: from the initial diagnostics to the decision of when repair no longer makes sense. Below are brief conclusions for each section of the breakdown.
Key takeaways
- Diagnostics by code: errors E01–E09 narrow things down to a specific unit, but only a multimeter continuity test confirms the cause — the code points to a symptom, not to a part.
- Common replacements: the heating element, drain pump, drum bearings and control module fail more often than other units and account for the bulk of service calls.
- Disassembly by loading type: top-loading and front-loading models are opened up differently, and the TL and FL series differ in their set of spare parts — there is no universal work procedure.
- Selecting parts: original spare parts are selected strictly by model and series, since compatible equivalents often differ in mounting dimensions and fastening.
- The economics of the decision: repairing a single unit almost always pays off, but replacing the tub assembly together with the control module can equal the cost of a new machine.
